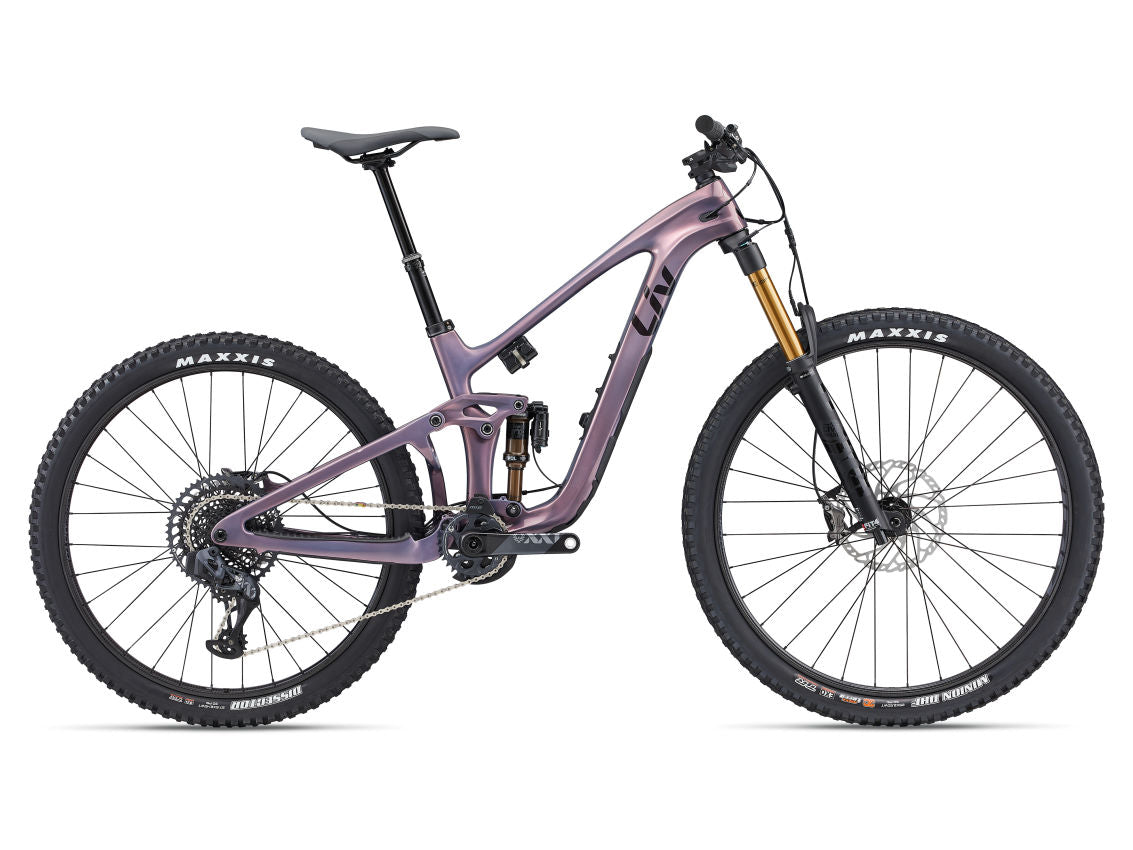

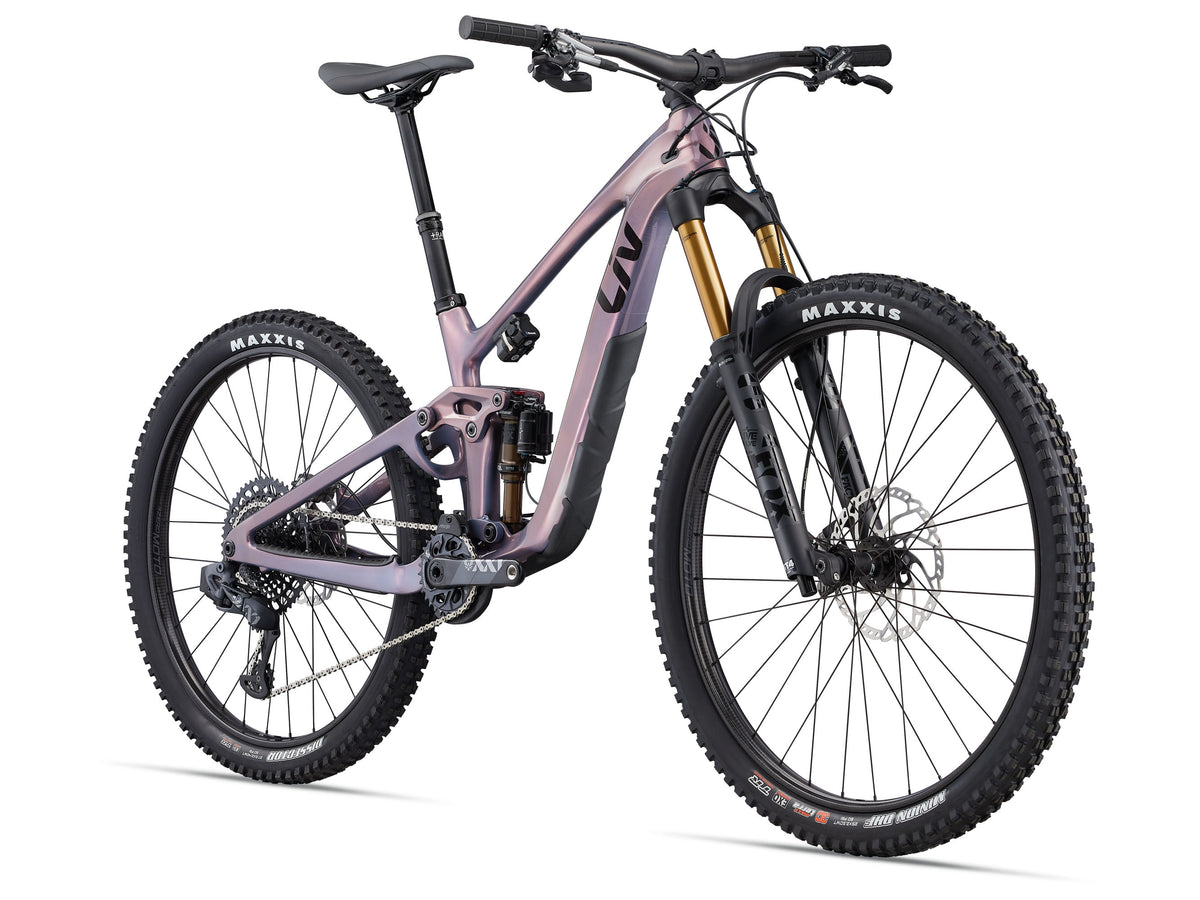

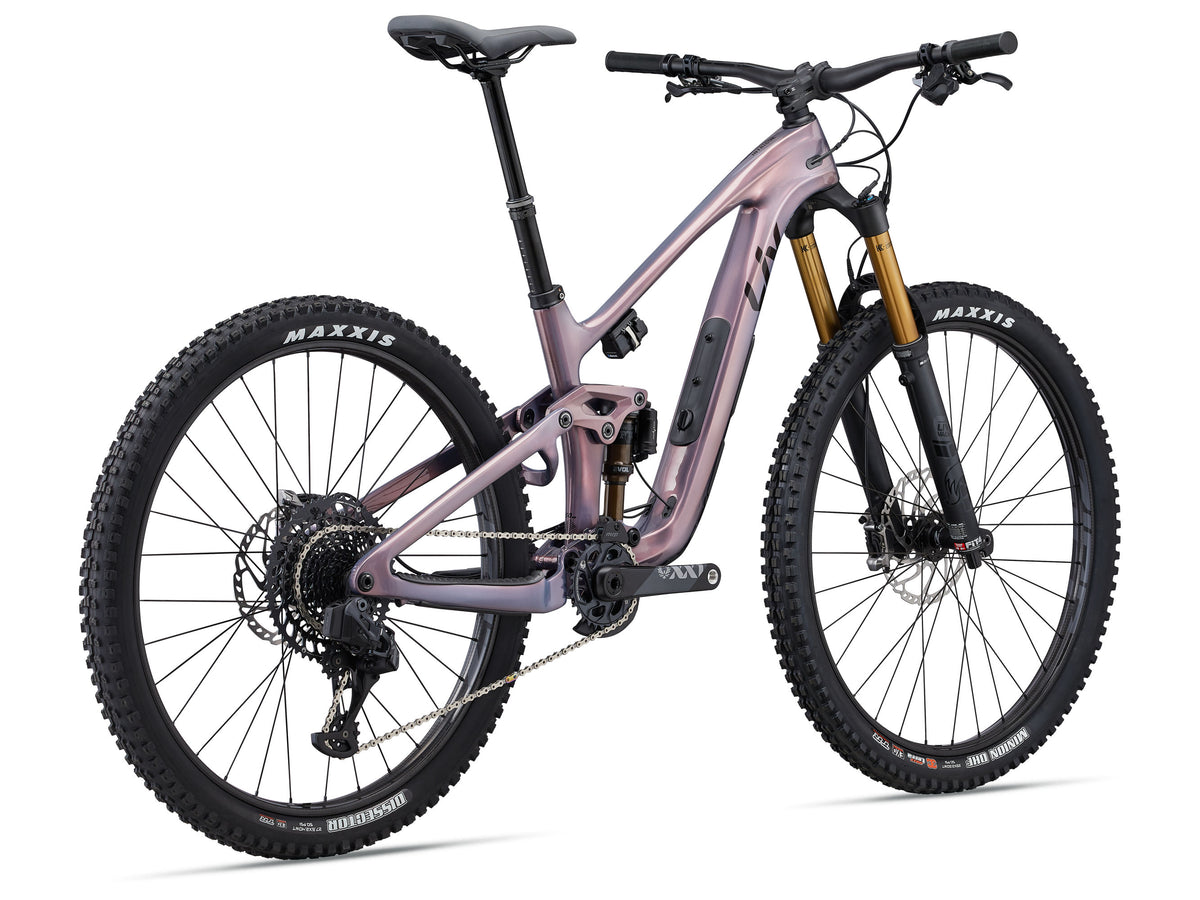

Liv Intrigue LT Advanced Pro 0 2023

$6,499.00 ~~$14,999.00~~

Colour

Mirage

Size

MEDIUM

Product variants

Loading locations...

geometry

specs

highlights

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
Available sizes may vary from country to country.

XS
LOW | MID | HIGH

S
LOW | MID | HIGH

M
LOW | MID | HIGH

L
LOW | MID | HIGH

A SEAT TUBE LENGTH (mm)

370

390

420

450

B SEAT TUBE ANGLE

76.2° | 76.6° | 77.0°

77.3° | 77.6° | 78.0°

C TOP TUBE LENGTH (mm)

552 | 552 | 550

567 | 566 | 565

581 | 580 | 579

603 | 602 | 601

D HEAD TUBE LENGTH (mm)

100

110

E HEAD TUBE ANGLE

64.7° | 65.1° | 65.5°

64.6° | 65.1° | 65.5°

64.8° | 65.1° | 65.5°

F FORK RAKE (mm)

G TRAIL (mm)

131 | 127.9 | 124.8

131.6 | 127.8 | 124.8

130.6 | 127.7 | 124.8

130.5 | 127.7 | 124.8

H WHEELBASE (mm)

1166 | 1166 | 1164

1183 | 1180 | 1179

1208 | 1207 | 1207

1232 | 1231 | 1231

I CHAIN STAY LENGTH (mm)

443 | 442 | 440

J BOTTOM BRACKET DROP (mm)

25 | 20 | 15

24 | 20 | 15

35 | 30 | 25

K STACK (mm)

629 | 627 | 624

628 | 627 | 624

628 | 625 | 622

637 | 634 | 631

L REACH (mm)

398 | 402 | 406

413 | 417 | 421

439 | 442 | 447

459 | 462 | 467

M STAND OVER HEIGHT (mm)

727 | 727 | 727

750 | 750 | 750

760 | 760 | 760

770 | 770 | 770

O STEM LENGTH (mm)

P CRANK LENGTH (mm)

165

170

Q WHEEL SIZE

F29"/R27.5

29"

Sizes

XS, S: MX only, M, L: 29" F&R out of the box, MX compatible

Colours

Mirage

Frame

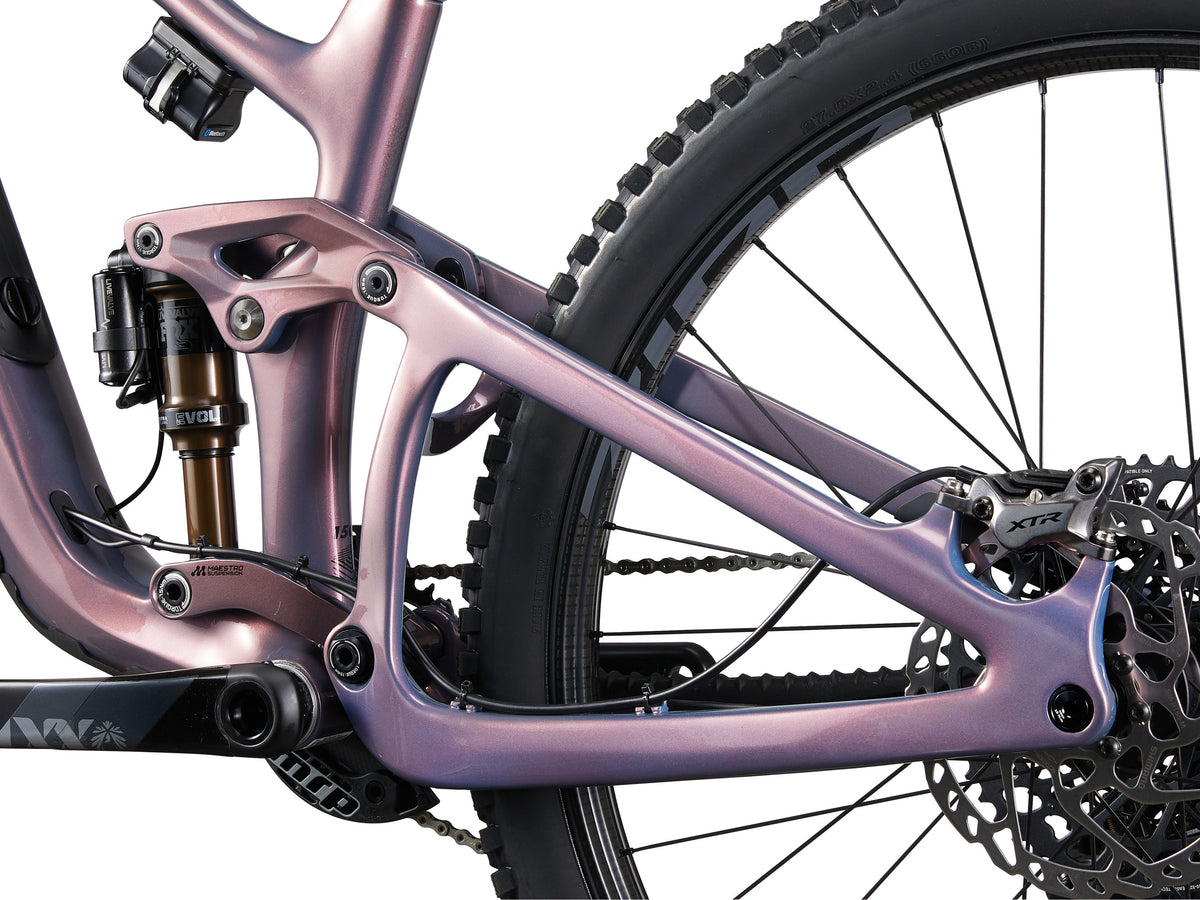

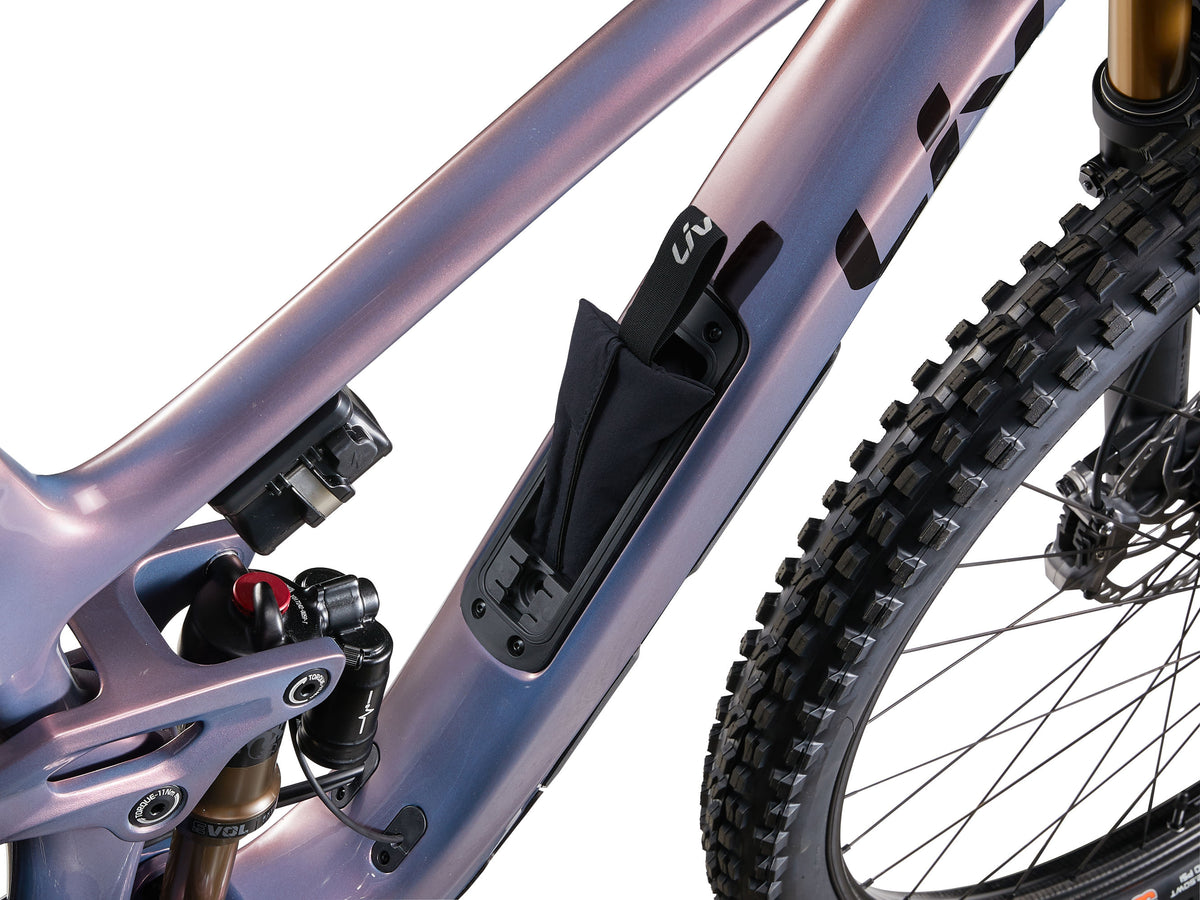

Advanced-Grade Composite front and rear triangles, 150mm Maestro Suspension, flip chip – Maestro 3, integrated down tube storage

Fork

Fox 36 Factory Live Valve, 160mm, FIT4 damper, Boost, 15x110, Kabolt, tapered, 44mm offset

Shock

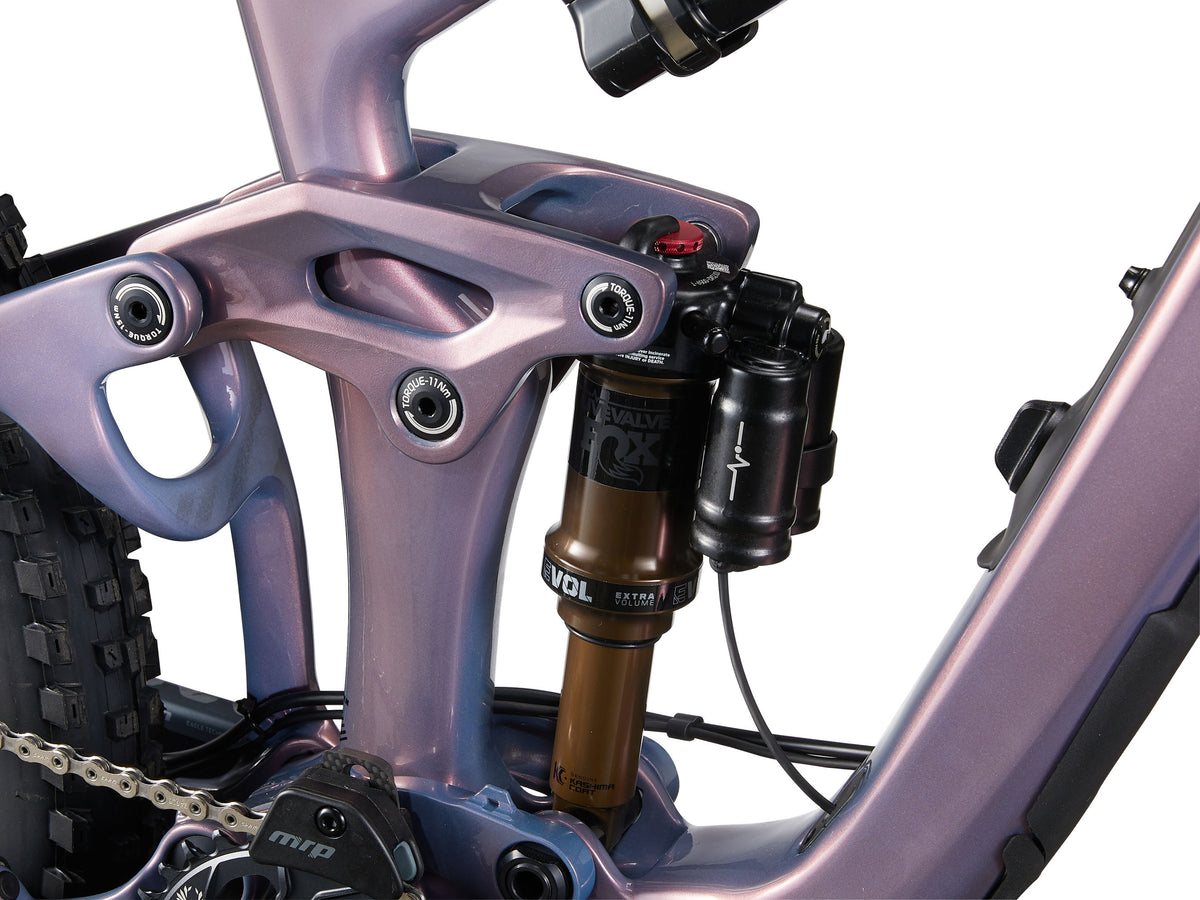

Fox Factory Live, custom tuned for Liv

Handlebar

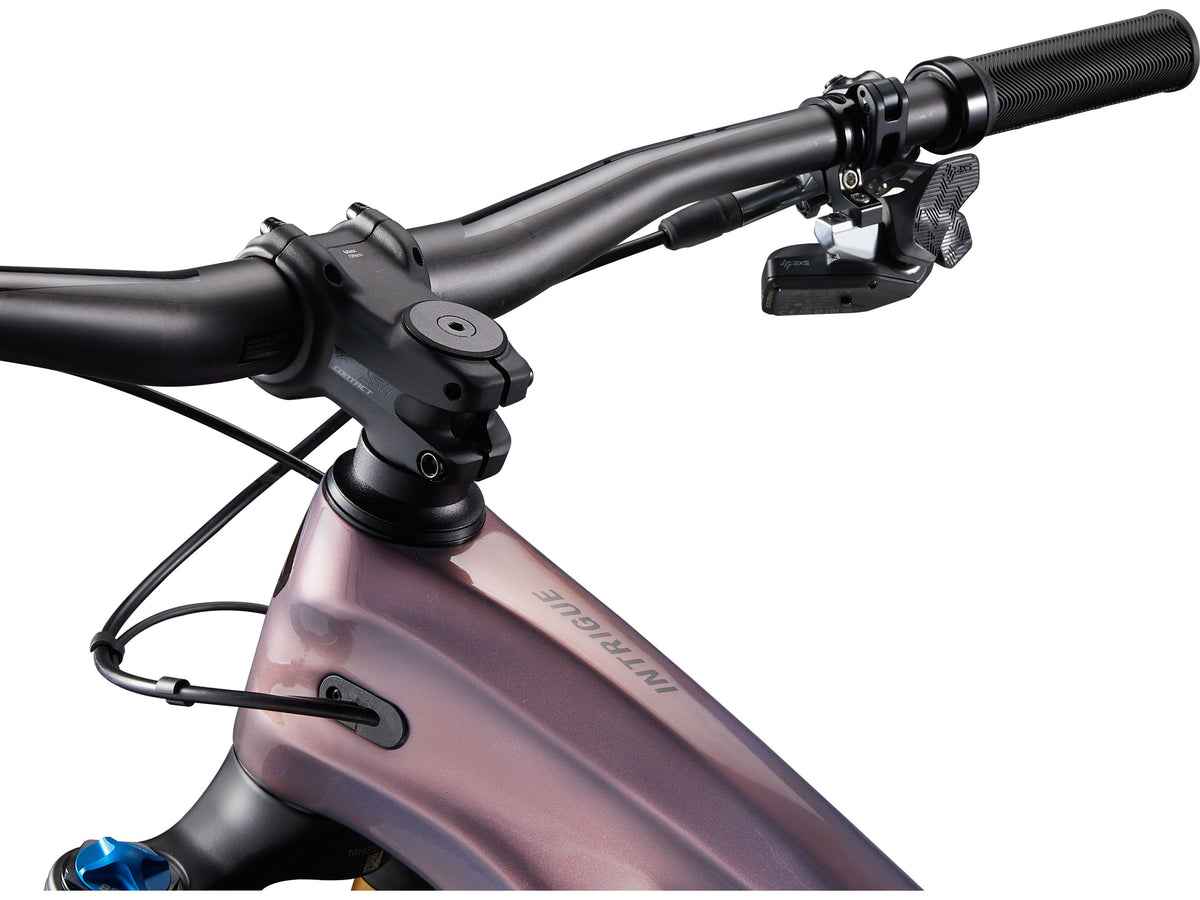

Giant Contact SLR TR35, composite

Grips

Liv Tactal single lock-on

Stem

Giant Contact SL

Seatpost

TranzX travel-adjustable dropper, remote

Saddle

Liv Sylvia

Pedals

N/A

Shifters

SRAM AXS Rocker, 1x12

Front Derailleur

N/A

Rear Derailleur

SRAM XX1 Eagle AXS

Brakes

Shimano XTR M9120, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm

Brake Levers

Shimano XTR, BL-M9100

Cassette

SRAM XX1 Eagle AXS, 10x52

Chain

SRAM X01 Eagle

Crankset

SRAM XX1 Eagle DUB, 30t, 55mm chainline

Bottom Bracket

SRAM DUB, press fit

Rims

Zipp 3ZERO MOTO XS/S: [F] 29", [R] 27.5 M/L: [F]29", [R]29" (*Quarq TyreWiz not included)

Hubs

Zipp 3ZERO MOTO ZM2

Spokes

Zipp 3ZERO MOTO

Tyres

[Size XS, S, M and L, F] Maxxis Minion DHF 29x2.5WT, 3C Maxx Terra, EXO, TR, tubeless [Size XS and S, R] Maxxis Dissector 27.5x2.4WT, 3C Maxx Terra, EXO, TR, tubeless [Size M and L, R] Maxxis Dissector 29x2.4WT, 3C Maxx Terra, EXO, TR, tubeless

Extras

MRP AMg V2 chainguide, 3M tailgate protector, tubeless prepared, max tyre size 2.5", max chainring size 32t

Weight

The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

KEY PERFORMANCE FACTORS

Performance Long Travel Trail

Lightweight Advanced-Grade Composite frameset with integrated down tube storage features a slacker head tube angle for confidence on technical terrain and a longer reach to keep you centred and in control in the corners. The 150mm of Maestro rear wheel suspension has been custom tuned by women who shred, for women who shred. And paired with 160mm of front suspension, you’ve got a bike that is equal parts agile and burly.

Adjustable Frame Geometry

All-new flip chip – Maestro 3 offers more adjustability allowing you to easily change the head tube and seat tube angles, bottom bracket height and rear wheel size* to fine-tune handling for varying trail conditions and your personal riding style. *Sizes M and L only

Best of Both Wheels

Frame sizes XS and S are solely designed for a MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimizes rear wheel travel, provides a playful and nimble rear end and a fast rolling, stable front end. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear with the ability to run a 27.5-inch wheel in the rear. This provides two unique riding characteristics – fast and comfortable or quick and nimble – allowing you to customize your set up for how and where you ride. *27.5-inch wheel sold separately for frame sizes M and L
